Loose splice plates, blocked perforations, salt deposits and unsupported cable sections can turn a sound installation into a safety and reliability problem. Use the inspection sequence, cleaning method, repair criteria and loading checks below to maintain the tray system without transferring stress to cables or adjacent services.
Key takeaways
- Inspect bends, risers, covers, entries and bonding before energising cables.
- Schedule inspections after installation, cable work and severe weather exposure.
- Clean with dry methods and isolate cables before removing corrosion or debris.
- Repair supports after checking loading, span, fasteners and cable clearances.
What to inspect immediately after installation and after cable work

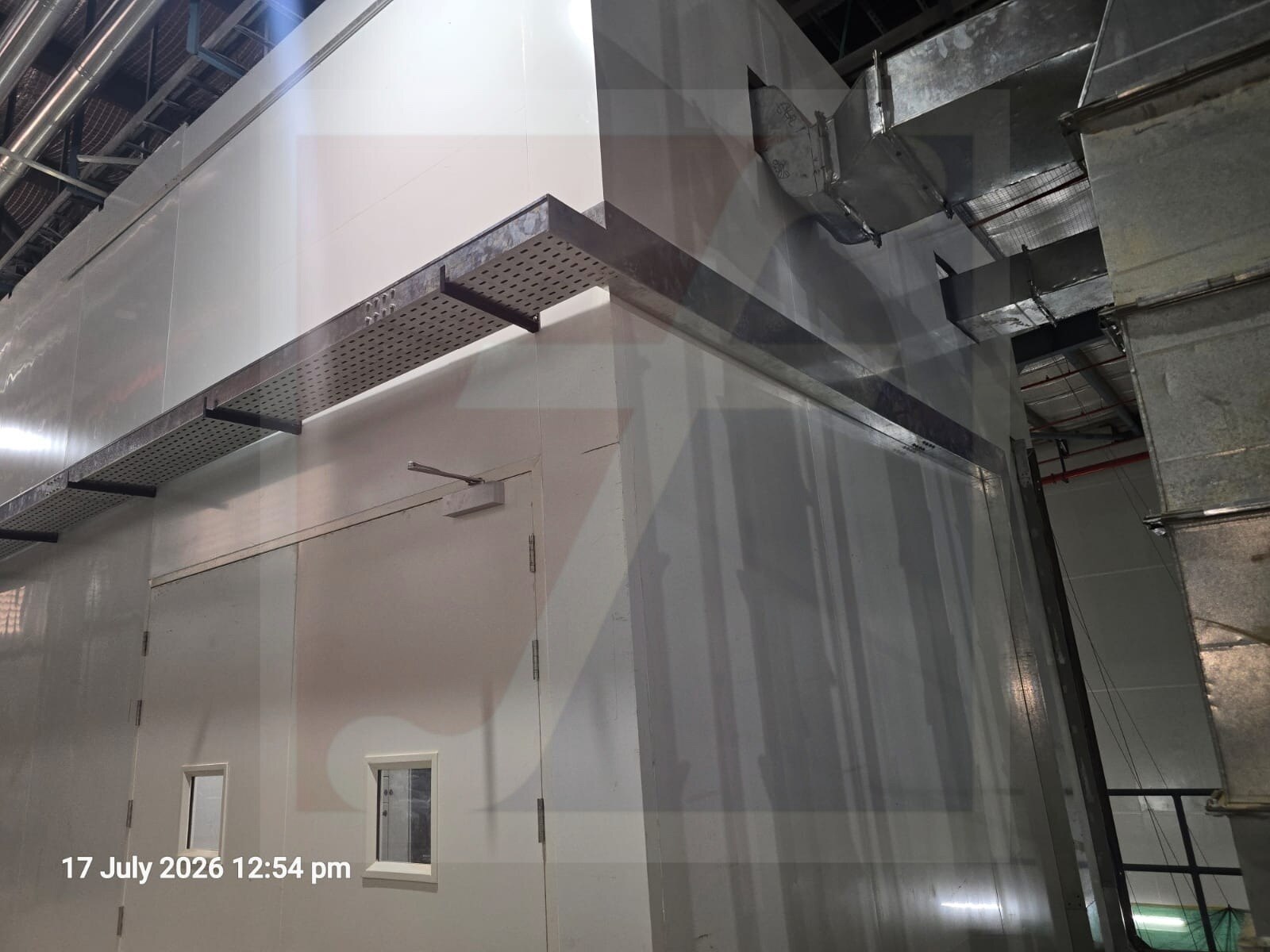

A newly installed perforated tray is ready for service only when its mechanical path, cable protection and bonding are verified. Inspect every straight section, bend, riser, cover, cable entry and termination point before pulling or energising cables.
- Check tray identification, material and coating against the approved drawing.
- Confirm supports are plumb, firmly anchored, correctly spaced and free from distortion.
- Examine splice plates, fasteners and joints for missing, loose or incompatible hardware.
- Run a gloved hand along perforation and side-rail edges. Remove burrs and reject sharp deformation or coating failure; add edge protection or bushings where a cable jacket could touch an edge.
- Confirm covers fit securely, perforations are not blocked, and no tray section is being used as a walkway or ladder base.
- Check bonding jumpers and measured electrical continuity where the design requires a continuous earth path.
- Verify cable entry points, bend transitions and risers leave no unsupported or sharply bent cable.
- After cable work, inspect newly pulled and existing jackets for cuts, crushing, abrasion and excessive sag.
- Compare the installed cable load with the approved manufacturer’s load/span table, support spacing and bend-radius requirements; unused tray space alone does not prove capacity.
- Confirm the planned separation of power, control, instrumentation and communication cables.
Record the tray identification, location, inspection date, defect description, corrective action and before-and-after photographs. A complete record supports perforated cable tray maintenance in chennai and proves that the approved system, not just its appearance, was preserved.
How often should you inspect a perforated cable tray in Chennai?
Use a risk-based interval, not a universal annual rule. In Chennai, coastal salt, dust, humidity, chemical vapour, outdoor exposure and the consequence of cable failure demand shorter intervals.
| Installation | Routine visual inspection | Detailed inspection |
|---|---|---|
| Clean indoor electrical room | Every 3 months | Every 12 months |
| Dusty industrial area | Monthly | Every 3 months |
| Humid indoor or chemical area | Monthly | Every 3 months |
| Coastal or outdoor installation | Monthly and after monsoon storms | Every 3 months |
| Critical circuits or severe vibration | Monthly | Every 1–3 months |
Inspect immediately after flooding, impact, unusual vibration, water ingress or major cable additions. Record the reason and findings rather than waiting for the planned date.
At each inspection, check:
- Salt deposits, white corrosion on zinc coatings, red rust at cut edges and fasteners, coating loss, and corrosion beneath cable bundles
- Loose or missing splice plates, bolts, nuts, washers, support hardware, covers and bonding connections
- Buckled side rails, bent perforations, blocked drainage holes, standing water and sagging or displaced sections
- Sharp burrs or deformed tray openings that could cut a cable jacket; fit edge protection or reroute the cable
- Cable sag, unsupported sections, overcrowding, separation between power, control, instrumentation and communication cables, and bend-radius compliance
Include tray identification, location, material and coating, support span, inspection date, defect or corrosion grade, continuity measurement where applicable, corrective action and before-and-after photographs in the perforated cable tray upkeep record. The record shows whether repeated patching is masking a failing support or coating.
How to clean the tray and assess corrosion without damaging cables
After water ingress, isolate the circuit and remove the leak before cleaning. A dry-looking tray can hide salt, mud, trapped water and damaged cable insulation; do not re-energise until a qualified person checks insulation resistance and terminations.
1. Install temporary support before moving a loaded or flooded bundle. Follow a perforated cable tray recovery guide: recover the structure separately from the cables, and never pull the bundle to straighten a weakened tray or splice.
2. Protect cable jackets with clean sheeting, then vacuum loose dust and brush deposits away with a soft, non-metallic brush. For salt or mud, use a lightly damp lint-free cloth and clean water; avoid high-pressure water, abrasive pads, solvents and scraping across cable jackets.
3. Inspect perforation and side-rail edges for burrs, sharp deformation, blocked drainage holes, standing water and coating loss. Fit edge protection or reroute any cable touching a sharp opening, then inspect bending, abrasion, cleats, separation and minimum bend radius.
4. Treat light, firmly adhered surface oxidation after cleaning when the tray remains straight, load-capable and free from section loss. Replace corroded fasteners, splice plates, supports or short tray sections when threads, holes, joints or metal thickness are compromised; do not weld over damage or drill arbitrary holes.
5. Choose full replacement when corrosion is widespread, rails are buckled, drainage is ineffective or the approved load path is uncertain. Replace water-damaged cables and accessories separately when insulation, glands or terminations fail inspection, even if the tray is sound.
Record location, coating, defect severity, photographs, tests and corrective action.
How to check cable loading and complete a support repair
A new circuit is acceptable only when the complete tray system remains within its manufacturer’s load/span table. Check tray width and depth, material, support span, splice location, support type, installation orientation, cable fill, separation and bend-radius clearance; unused space alone does not prove capacity.
1. Isolate the affected circuit and install temporary support before unloading or disconnecting a loaded tray. Do not lift a flooded or sagging cable bundle to straighten the tray; weakened splice plates and supports can fail.
2. Inspect the tray, perforations, side rails, splice plates, fasteners and supports for looseness, buckling, burrs, sharp edges and coating failure. A cable touching a sharp opening needs a bushing, edge protection or rerouting.
3. Replace damaged rails, supports, splice plates or fasteners with compatible system components. Do not drill arbitrary holes, cut away side rails, straighten severely buckled sections or weld across a damaged splice; these changes can disrupt the tested load path and corrosion protection.
4. After structural work, inspect cable jackets for abrasion, confirm cleats and separation, check unsupported sections and verify minimum bend radii before restoring circuits. This separates structural recovery from cable recovery.
5. If field cutting or drilling was unavoidable, clean the exposed steel and apply a repair coating compatible with the original zinc system. Inspect cut ends, drilled holes, splice plates and fasteners separately because they can corrode first.
After Chennai flooding, remove water, salt and mud without damaging jackets, then have insulation resistance and terminations assessed by a qualified person before re-energisation. Drying the tray exterior is not cable recovery.
When to replace the tray system and what to document
A local repair is adequate only when the defect is limited to a replaceable fastener, splice plate, cover, or support, and the tray remains aligned, corrosion-resistant, and within its approved load and span arrangement. Install temporary support before unloading or disconnecting a loaded tray.
Replace the affected section or support, rather than patching it, when you find:
- Severe buckling, twisted side rails, cracked welds, or permanent deformation
- Perforations or coating damaged by arbitrary drilling, cutting, or unauthorised welding
- Repeated corrosion at the same splice or support after cleaning and surface treatment
- Cable insulation damage, sharp edges, displaced supports, or a changed bend radius
- A load or span arrangement that no longer matches the manufacturer’s table
Never straighten a severely buckled tray or weld over a damaged splice. Do not use the tray as a walkway or place a ladder on it; a deformed tray can lose capacity and damage cable jackets. After structural work, check cable sag, cleats, separation, abrasion, and minimum bend radius before restoring circuits.
Involve a perforated cable trays manufacturer for maintenance in Chennai when the repair changes tray geometry, support spacing, material, coating, splice compatibility, or load path. Fixotech Engineering Systems Pvt Ltd: Manufacturer of Cable Management Systems can help verify a replacement section, bend, splice, or support against the installed system.
Record the tray identification, location, material and coating, support span, inspection date, defect or corrosion grade, continuity measurement where applicable, corrective action, replacement parts, and before-and-after photographs. Keep the record with the approved load/span table and work permit.
Frequently asked questions
What should you inspect immediately after installing a perforated cable tray?
Inspect every straight section, bend, riser, cover, cable entry and termination point. Verify cable protection, mechanical continuity, supports and bonding before pulling or energising cables.
How often should you inspect a perforated cable tray in Chennai?
Inspect after installation, after cable additions or alterations, and after any event that could damage supports or expose the system to water, chemicals or impact. Set routine intervals from the site environment, loading and maintenance history.
How do you clean a perforated cable tray without damaging cables?
Isolate affected cables when cleaning could disturb them. Remove loose dust with a soft brush or vacuum, keep moisture away from cable entries and joints, and avoid sharp tools or abrasive methods near insulation.
How do you check cable loading and repair a tray support?
Compare installed cable weight and fill with the tray design documents, then inspect span, deflection, brackets, fasteners and clearances. Replace damaged supports with compatible parts and restore bonding before returning the route to service.
When should you replace a perforated cable tray system?
Replace sections with severe corrosion, cracked or deformed metal, failed joints, unsafe deflection, damaged protective coating or supports that cannot be restored. Record the defect, location, cause, repair or replacement, inspection date and responsible person.
