A failed tee fitting can be mistaken for a bend, cross, reducer, coupling plate, or damaged straight tray, leading to a replacement that cannot align with the existing route. By the end, you will know how to identify and measure the fitting, check compatibility and cable loads, plan a safe replacement, and send a complete quotation request to a Chennai supplier.
Key takeaways
- Photograph all three outlets, splice plates, rungs, and identification marks before removal.
- Match tray width, rail height, material, finish, rung spacing, and splice-hole pattern.
- Verify cable fill, minimum bending radius, support spacing, and isolation requirements.
- Include dimensions, photographs, quantity, material, finish, and delivery location in your quotation request.
Confirm that the failed component is a tee bend
A ladder tray tee bend is a horizontal branch fitting that joins three tray runs in the same plane. Photograph the failed part before removal, showing all three outlets, the side rails, rungs, splice plates, and any stamped identification.
A fitting with two outlets is a horizontal 90-degree bend; one changing elevation is a vertical bend; four outlets indicate a cross fitting.
Do not identify the part by nominal tray width alone. Record the following from the fitting and the connected straight sections:
- Tray width and side-rail height
- Side-rail profile, flange dimensions, and rung spacing
- Centreline bend radius
- Straight-run length at each of the three outlets
- Branch angle and orientation viewed from the cable-entry side
- Splice-hole pattern, hole pitch, hole diameter, and bolt diameter
- Joint method, including splice plates, bolts, clamps, or another connection
- Material grade, thickness, and surface finish
Mark the three outlets on a sketch as incoming run, through run, and branch, then add arrows for cable direction. Measure the radius along the cable centreline, not across the outside edge. Confirm that the radius satisfies the largest cable’s manufacturer-specified minimum bending radius.
For a tee bend replacement, send the dimensioned sketch, photographs, tray identification, and measurements to the manufacturer.
Ask whether the item is a standard ladder tray tee bend or a made-to-order part, and request a dimensioned drawing, material and finish details, fitting load data, delivery condition, and written confirmation that it will interchange with the installed system.

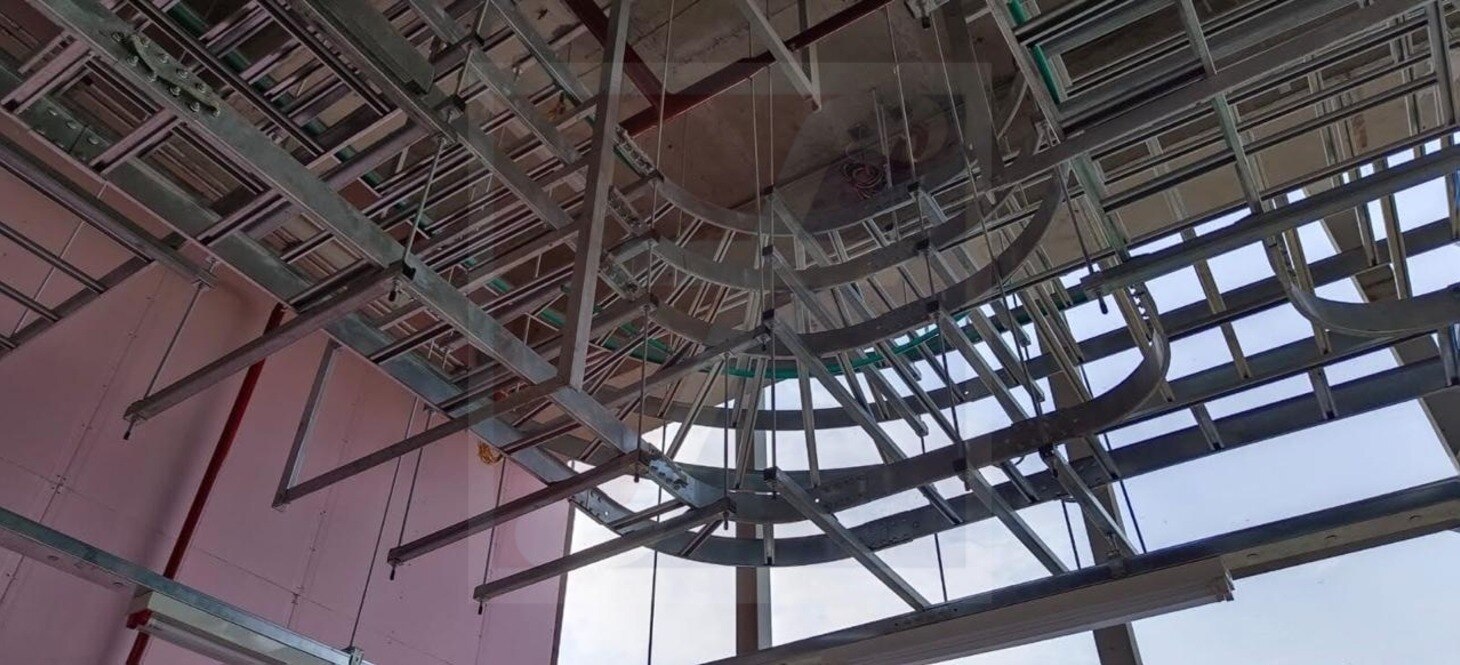

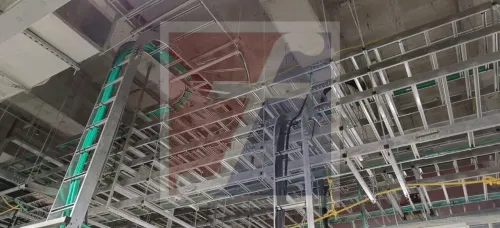

Match the replacement to the installed tray system
A matching tray width is not enough. Compare the installed system’s side-rail shape, rail depth, rung spacing, bend radius, branch direction, and splice-hole pattern; a different hole pitch or flange profile can force drilling, expose the finish, and weaken the joint.
| Installed detail | Replacement must match | What goes wrong if it differs |
|---|---|---|
| Tray profile | Side-rail height, flange dimensions, rung spacing, and width | The tee will not seat or align with adjoining straight sections |
| Branch configuration | Tee direction, branch angle, straight-leg lengths, and bend radius | Cables enter the branch at the wrong route or lose bending clearance |
| Material | Material grade for the rails, rungs, tee, splice plates, bolts, nuts, and washers | Dissimilar materials can create corrosion or an unsuitable joint |
| Finish | Finish type and thickness, such as hot-dip galvanizing, electro-galvanizing, powder coating, or stainless finish | Cutting or forced slotting removes protection and leaves exposed metal |
| Joining details | Splice-plate shape, hole pitch, bolt diameter, washer arrangement, and whether hardware is supplied loose | Holes miss, bolts do not clamp correctly, or the fitting cannot be secured |
Record the tray manufacturer or system before contacting a ladder accessories manufacturer. State whether you need a standard ladder tray tee bend or a made-to-order replacement, and request:
- A dimensioned drawing showing radius, profiles, holes, and branch geometry
- Material grade, finish, fitting load data, support-spacing limits, and delivery condition
- Written confirmation of interchangeability and complete splice hardware
For ladder cable tray accessories in chennai, send measured dimensions and photographs; photographs alone cannot prove radius or hole compatibility.

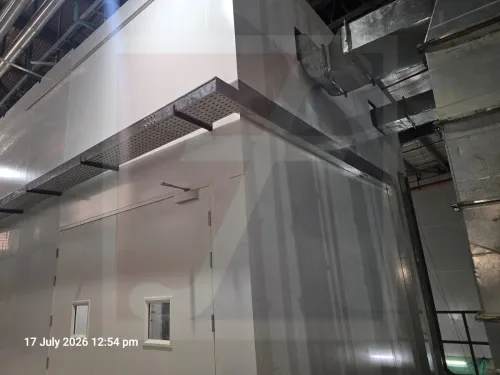

Check cable capacity, bending radius, and worksite safety
Do not move cables onto the replacement until its load rating, internal radius, dimensions, and bonding path match the installed system. The ladder tray tee bend must accommodate the largest or stiffest cable’s manufacturer-specified minimum bending radius; nominal tray width alone is not enough.
1. Calculate cable capacity at the tee: confirm the combined cable weight, allowable fill, support spacing, and the replacement’s stated load data. Include temporary cable loading during the change, not only the final arrangement.
2. Check the route through each outlet. Record the tee’s fitting radius, branch angle and orientation, straight-run length, tray width, and side-rail height. A mirrored branch or short outlet can force a cable below its permitted radius.
3. Inspect the replacement before taking it to the work area. Reject twisted rails, sharp cut edges, blocked splice holes, damaged coating, missing hardware, or holes that do not align. Remove burrs or fit edge protection before cables pass across the fitting.
4. Confirm the splice plates, bolt diameter, hole pattern, rail profile, and rung arrangement match the existing tray. Do not substitute a horizontal bend, vertical bend, reducer, cross, or coupling plate for a tee.
5. Isolate the affected circuits under an approved permit-to-work and lockout/tagout procedure. Barricade the area, control dropped-object risks, provide safe access, and use gloves, eye protection, and suitable lifting equipment.
6. Verify electrical continuity across the joint. If paint or poor mating interrupts the bonding path, install a correctly sized bonding jumper and test the completed connection before energisation.
Remove and install the tee without damaging cables
Isolate the affected cable section before loosening any tray connection. De-energize it, apply lockout and tagout, verify absence of voltage, and identify cables that continue through the tee so they are not disturbed accidentally.
1. Mark the tee, adjacent straight sections, and every cable crossing the work area. Install temporary supports such as padded slings or cable-support frames on both sides of the fitting. Keep the cables supported at their existing level; never let their weight hang from a splice plate.
2. Inspect the replacement before lifting it into place. Reject twisted side rails, sharp cut edges, blocked splice holes, damaged coating, missing hardware, or a mirrored branch. Confirm that its radius preserves the largest cable’s specified minimum bending radius.
3. Loosen and remove the tee’s splice bolts while the temporary supports carry the cables. Protect cable jackets with edge guards, then separate the fitting without dragging cables across rails, rungs, or exposed metal. Do not force mismatched holes by drilling or slotting the new tee.
4. Position the replacement with the branch facing the required route. Align side-rail profiles, splice-plate holes, tray elevations, and cable clearances, then install the specified bolts and hardware. Tighten them to the tray manufacturer’s stated torque before removing temporary supports.
5. Inspect the completed joint from both sides. Check full bolt engagement, tight splice plates, aligned rails, intact coating, unobstructed holes, and a smooth cable path with no sharp contact point.
Confirm the cables retain their bend radius and that the fitting load and support spacing match the approved data for ladder cable tray accessories in Chennai.
Choose the replacement route and prepare a Chennai quotation request
Choose a tee replacement when the fitting is twisted, cracked, badly corroded, has damaged splice holes, or no longer preserves the required cable bending radius.
Repair is suitable only for minor, local damage that leaves the side rails, branch geometry, holes, coating, and load path intact; rerouting is safer when no compatible tee exists or the new branch would clash with equipment, access routes, or clearances.
| Route | What it means | When it applies |
|---|---|---|
| Repair | Restore the installed tee without changing its geometry | Damage is superficial and an engineer accepts the repaired load path |
| Tee replacement | Install a matching or approved made-to-order fitting | The branch, rails, holes, radius, or coating are compromised |
| Rerouting | Change the cable path and support arrangement | A compatible tee cannot be fitted without forced cutting or drilling |
For a ladder accessories manufacturer tee bend for replacement in Chennai, send a dimensioned sketch and photographs, not photographs alone. Include:
- Existing tray manufacturer or system, tray width, side-rail depth and profile, rung spacing, material grade, finish, bend radius, branch direction, tee angle, straight-leg lengths, splice-plate hole pattern, bolt diameter, and joining method.
- Cable type and largest cable’s minimum bending radius, cable load at the junction, support spacing, and required delivery condition.
- State whether you need a standard tee bend or a made-to-order replacement, and request interchangeability confirmation, load data, finish, material grade, drawing, lead time, and approval documents.
Give this package to Fixotech Engineering Systems Pvt Ltd: Manufacturer of Cable Management Systems, or any ladder accessories manufacturer, before purchase approval.
